The Stream input supports adding IP Cameras and Streaming Servers that support the RTSP or Transport Stream protocols.

In particular, the Stream input supports the Teradek Cube device and Teradek Sputnik server.

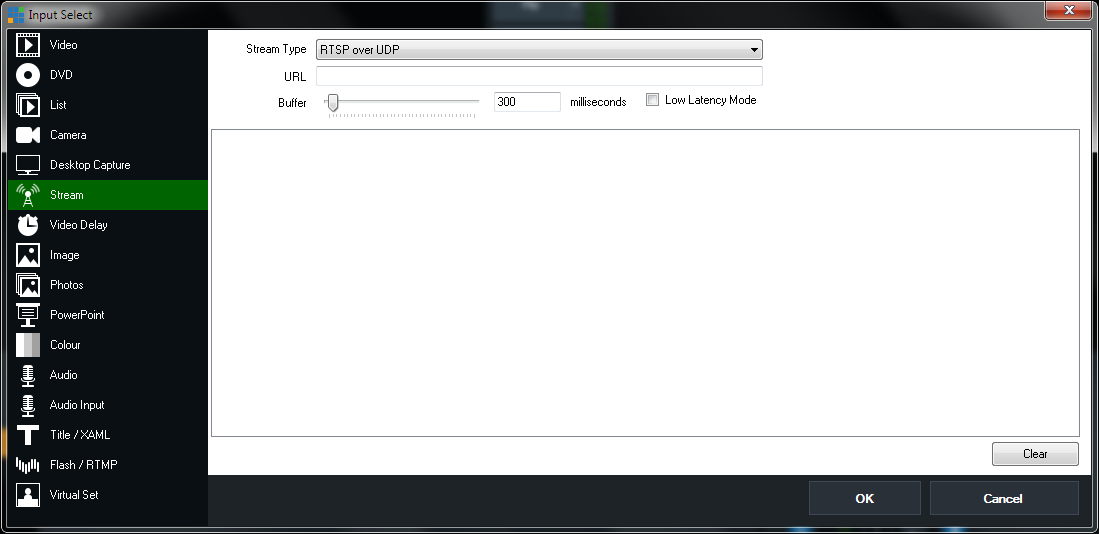

Stream Type

RTSP over UDP / RTSP over TCP

RTSP based sources such as the Teradek Cube and IP Cameras

Enter the URL in the following format: rtsp://0.0.0.0/stream1

Transport Stream over UDP

Select this option if a Transport Stream is being sent directly to the vMix machine over UDP

Enter the port number of the stream

Transport Stream over TCP

Selecting this option sets up vMix as a TCP server that can accept connections from remote streams

Enter the port to listen for connections

Transport Stream over TCP Pull

Select this option to connect to a remote Transport Stream server such as the Teradek Sputnik using the TCP protocol.
Enter the hostname and port of the remote Transport Stream server

Buffer

The network buffer in milliseconds can be configured to reduce jitter when receiving high latency network streams.

For local network streams, this should be set between 0 and 500 milliseconds or 1000 to 5000 milliseconds for Internet streams.

Low Latency Mode

Local streaming devices such as the Teradek cube support a delay of less than 5 frames in Low Latency Mode.

To use this mode, set the Buffer to 0 and tick the Low Latency Mode checkbox.

NOTE: If this option is enabled and the stream does not support Low Latency the video will show compression artefacts and will play back at a lower frame rate.

Video and Audio Formats

H264
AAC-HBR

Network Formats

RTSP

RTP (UDP and TCP)
TS (UDP, TCP and TCP Pull)

Firewall

UDP ports 35000 to 35500 will need to be open on your Firewall in order to receive streams in vMix.
